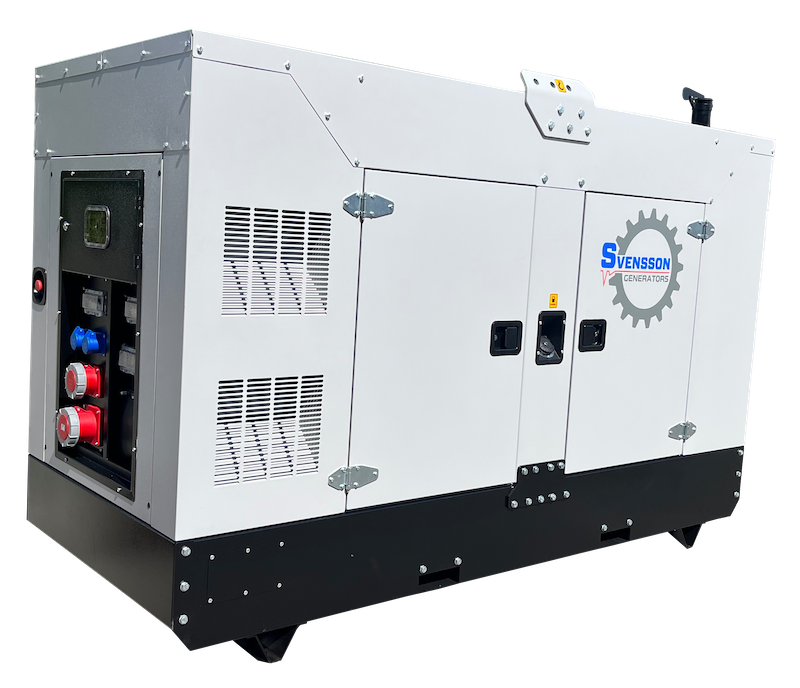

Generator DSG100
Characteristics
| Property | |
|---|---|
| Model name | DSG100 |
| Controller Unit | DSE |
| Peak Power | 110 KVA - 88 KW |
| Prime Power | 100 KVA - 80 KW |
| Tension | 400 V |
| Flow | 144 A |
| Cos θ | 0.8 |
| Frequency | 50 Hz |
| Phases | 3+N |
| RPM | 1500 RPM |
| Alternator Brand | STAMFORD |
| Alternator Model | UCI 274 C |
| Noise level (7 m) | 68 dB |
| Weight | 1610 Kg |
| Length | 2700 mm |
| Width | 1130 mm |
| Height | 1864 mm |
| Battery | 12 V |
| Tank (standard) | 120 L |
| Degree of protection | IP23 |
| Insulation class | H |
- DSG100
Download PDF Datasheet
This document contains all the technical data of the generator model DSG100.
DSG100 Cummins S.0 PDF DSG100 Deutz S.IIIA PDF DSG100 Deutz S.II PDF DSG100 Iveco S.0 PDF DSG100 Iveco S.IIIA PDF DSG100 Iveco S.II PDF DSG100 John Deere S.IIIA PDF DSG100 John Deere S.IIIA PDF DSG100 John Deere S.0 PDF DSG100 John Deere S.I PDF DSG100 Perkins S.IIIA PDF DSG100 Perkins S.IIIA PDF DSG100 Perkins S.IIIA PDF DSG100 Perkins S.II PDFOptions
- Tank capacity This model comes with a 120 L tank. Do you wish to order it with a different tank capacity? No problem!
- Connections Would you like special or extra connections? No problem.
- Brand of the engine can be freely selected. We are happy to help you make this choice.
- Noise level if necessary, can be additionally suppressed by customizing a cabinet.
- Controller Unit model depending on desired functions: auto start, time schedule, remote monitoring and control, cascade ...
Engines
| Brand | Model | Emission standard | Cylinders | Content | Type | Cooling | Power | Injection | Management | Consumption (50 / 75 / 100 %) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Cummins | 6BTA5.9 | Stage 0 | 6 | 5900 CC | Turbocharged | Water | 90 KW | Direct | Electronic | 12 / 18 / 25 L/u | |
 Deutz | TCD 2013 L4 2V | Stage IIIA | 4 | 4800 CC | Turbocharged Intercooler | Water | 90 KW | Common Rail | Electronic | 13,8 / 19,85 / 22,9 L/u | |
| Deutz | BF4M1013EC | Stage II | 4 | 4760 CC | Turbocharged Intercooler | Water | 96,1 KW | Direct | Mechanical | 14,6 / 21,6 / 28,9 L/u | |
 Iveco | NEF45TM3.S500 | Stage 0 | 4 | 4500 CC | Turbocharged Intercooler | Water | 109 KW | Direct | Mechanical | 220 / 206 / 211 L/u | |
| Iveco | N45TE2F | Stage IIIA | 4 | 4500 CC | Turbocharged Intercooler | Water | 98 KW | Common Rail | Electronic | 13,4 / 18,7 / 22,8 L/u | |
| Iveco | NEF N45TM2A | Stage II | 4 | 4500 CC | Turbocharged Intercooler | Water | 88 KW | Direct | Mechanical | 11 / 16,2 / 24,4 L/u | |
 John Deere | 4045HFU82B | Stage IIIA | 4 | 4500 CC | Turbocharged Intercooler | Water | 112 KW | Common Rail | Electronic | / / L/u | |
| John Deere | 4045HFU82B | Stage IIIA | 4 | 4500 CC | Turbocharged Intercooler | Water | 112 KW | Common Rail | Electronic | / / L/u | |
| John Deere | 4045HF158 | Stage 0 | 4 | 4500 CC | Turbocharged | Water | 91 KW | Direct | Mechanical | 11 / 16,5 / 23 L/u | |
| John Deere | 4045HF158R | Stage I | 4 | 4500 CC | Turbocharged | Water | 100 KW | Direct | Mechanical | 11 / 16,5 / 23 L/u | |
 Perkins | 1104D-44TAG2 | Stage IIIA | 4 | 8000 CC | Turbocharged Intercooler | Water | 93,6 KW | Direct | Mechanical | 11,2 / 17,1 / 22,6 L/u | |
| Perkins | 1104D-E44TAG2 | Stage IIIA | 4 | 4400 CC | Turbocharged Intercooler | Water | 120 KW | Direct | Electronic | 19,8 / 24,5 / 26,5 L/u | |
| Perkins | 1104D-E44TAG2 | Stage IIIA | 4 | 4400 CC | Turbocharged Intercooler | Water | 95,5 KW | Direct | Electronic | 13,2 / 19,8 / 24,5 L/u | |
| Perkins | 1140C-44TAG2 | Stage II | 4 | 4400 CC | Turbocharged | Water | 100 KW | Direct | Mechanical | 11,2 / 17,1 / 22,6 L/u | |
