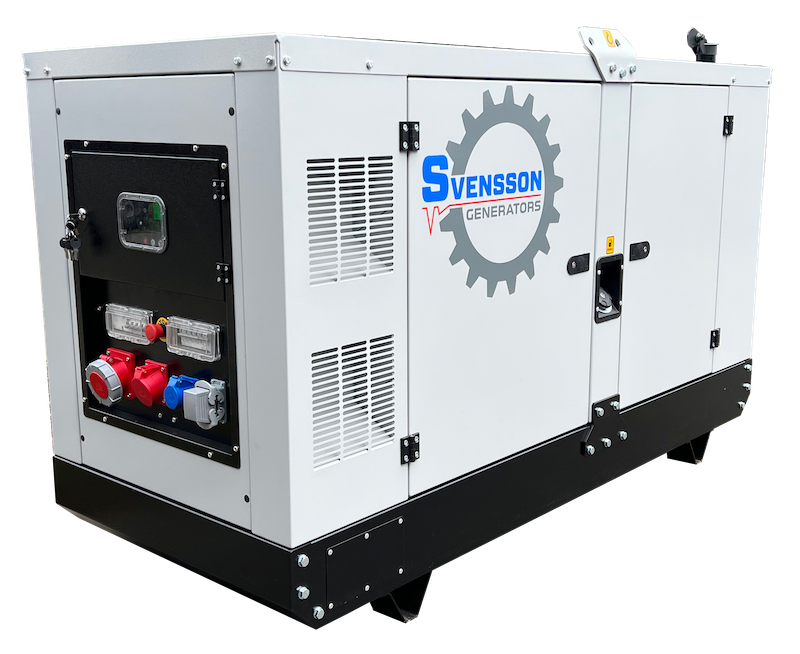

Generator DSG40
Characteristics
| Property | |
|---|---|
| Model name | DSG40 |
| Controller Unit | DSE |
| Peak Power | 44 KVA - 35 KW |
| Prime Power | 40 KVA - 32 KW |
| Tension | 400 V |
| Flow | 57 A |
| Cos θ | 0.8 |
| Frequency | 50 Hz |
| Phases | 3+N |
| RPM | 1500 RPM |
| Alternator Brand | STAMFORD |
| Alternator Model | PI 144 J |
| Noise level (7 m) | 67 dB |
| Weight | 1000 Kg |
| Length | 2200 mm |
| Width | 900 mm |
| Height | 1375 mm |
| Battery | 12 V |
| Tank (standard) | 70 L |
| Degree of protection | IP21 |
| Insulation class | H |
- DSG40
Download PDF Datasheet
This document contains all the technical data of the generator model DSG40.
DSG40 Cummins S.IIIA PDF DSG40 Deutz S.II PDF DSG40 Iveco S.II PDF DSG40 John Deere S.II PDF DSG40 John Deere S.IIIA PDF DSG40 John Deere S.0 PDF DSG40 Perkins S.I PDF DSG40 Perkins S.V PDF DSG40 Perkins S.0 PDFOptions
- Tank capacity This model comes with a 70 L tank. Do you wish to order it with a different tank capacity? No problem!
- Connections Would you like special or extra connections? No problem.
- Brand of the engine can be freely selected. We are happy to help you make this choice.
- Noise level if necessary, can be additionally suppressed by customizing a cabinet.
- Controller Unit model depending on desired functions: auto start, time schedule, remote monitoring and control, cascade ...
Engines
| Brand | Model | Emission standard | Cylinders | Content | Type | Cooling | Power | Injection | Management | Consumption (50 / 75 / 100 %) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Cummins | B3.3-G14 | Stage IIIA | 4 | 3300 CC | Turbocharged Intercooler | Water | 58 KW | Direct | Mechanical | 7,2 / 10,2 / 13,2 L/u | |
 Deutz | BF4M2011 | Stage II | 4 | 3110 CC | Turbocharged | Oil | 40,2 KW | Direct | Mechanical | 5 / 7,6 / 10,7 L/u | |
 Iveco | F32SM1A | Stage II | 4 | 3200 CC | Turbocharged | Water | 38,5 KW | Direct | Electronic | 5,3 / 7,9 / 10,6 L/u | |
 John Deere | 3029TF158R | Stage II | 3 | 2900 CC | Turbocharged | Water | 38 KW | Direct | Electronic | 8,4 / 10,8 / 14,4 L/u | |
| John Deere | 3029HFU89 | Stage IIIA | 3 | 2900 CC | Turbocharged Intercooler | Water | 37 KW | Direct | Mechanical | / / L/u | |
| John Deere | 3029TFU29R | Stage 0 | 3 | 2900 CC | Turbocharged | Water | 43 KW | Direct | Mechanical | 5,1 / 7,4 / 9,5 L/u | |
 Perkins | 1103A-33TG1 | Stage I | 3 | 3300 CC | Turbocharged | Water | 45 KW | Direct | Mechanical | 5,7 / 8,2 / 10,7 L/u | |
| Perkins | 404J-E22TA | Stage V | 4 | 2200 CC | Turbocharged Intercooler | Water | 45 KW | TBD | TBD | TBD / TBD / TBD L/u | |
| Perkins | 1103A-33TG1 | Stage 0 | 3 | 3300 CC | Turbocharged | Water | 45,6 KW | Direct | Mechanical | 5,8 / 8,2 / 10,8 L/u | |
